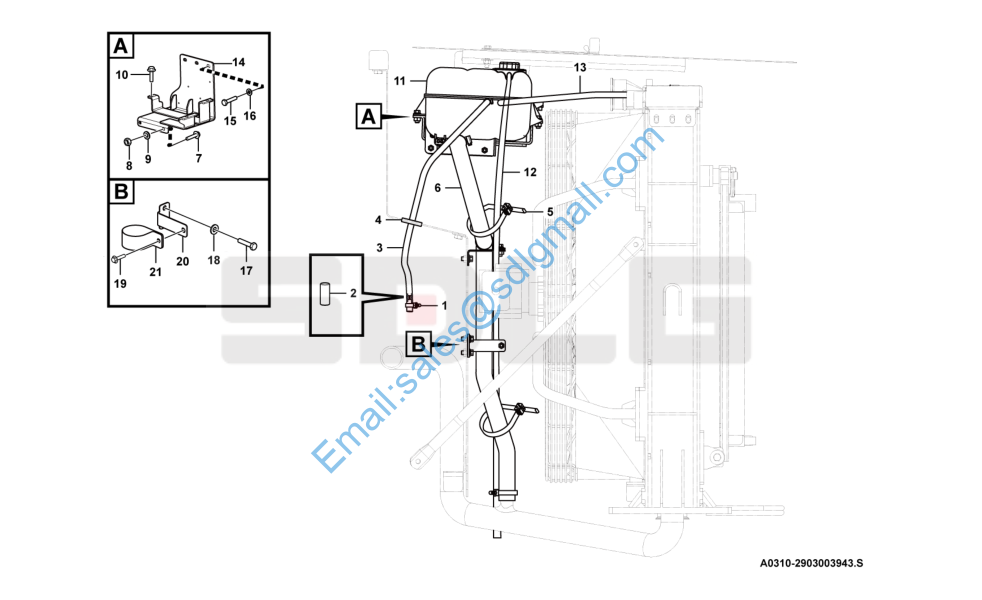

Expansion tank A0310-2903003943

1 4017000010 喉箍JB8870-d20 Clam p Y 4

2 29030022061 节流器 N ipple Y 1

3 4090000303 胶管H G 2491-10*820 H ose Y 1

4 29310021961 橡胶套-45 Rubber cap Y 1

5 4190001839 扎丝LG 13-ZS4*160 Cable tie Y 4

6 29030039441 补水管 H ose Y 1

7 4011001299 螺栓G B16674.1-M 10*25flZnyc-8.8-480 Screw Y 2

8 4013000370 螺母G B6170-M 10flZnyc-8-480 N ut Y 2

9 4015000433 垫圈G B97.1-10flZnyc-300H V -480 W asher Y 2

10 4011001294 螺栓G B16674.1-M 10*20flZnyc-8.8-480 Screw Y 3

11 11219198 副水箱 Expansion tank Y 1

12 29030025321 溢流管 H ose Y 1

13 4043003369 胶管LG B339-10*500 H ose Y 1

14 29030025501 副水箱支架 Bracket Y 1

15 4011001358 螺栓G B5783-M 10*30flZnyc-10.9-480 Screw Y 3

16 4015000426 垫圈G B96.1-10flZnyc-300H V -480 W asher Y 3

17 4011001247 螺栓G B5783-M 8*20flZnyc-8.8-480 Screw Y 4

18 4015000425 垫圈G B96.1-8flZnyc-300H V -480 W asher Y 4

19 4011001297 螺栓G B16674.1-M 8*16flZnyc-8.8-480 Screw Y 2

20 29030039451 支架 Bracket Y 2

21 29030010811 管夹 Clam p Y 2

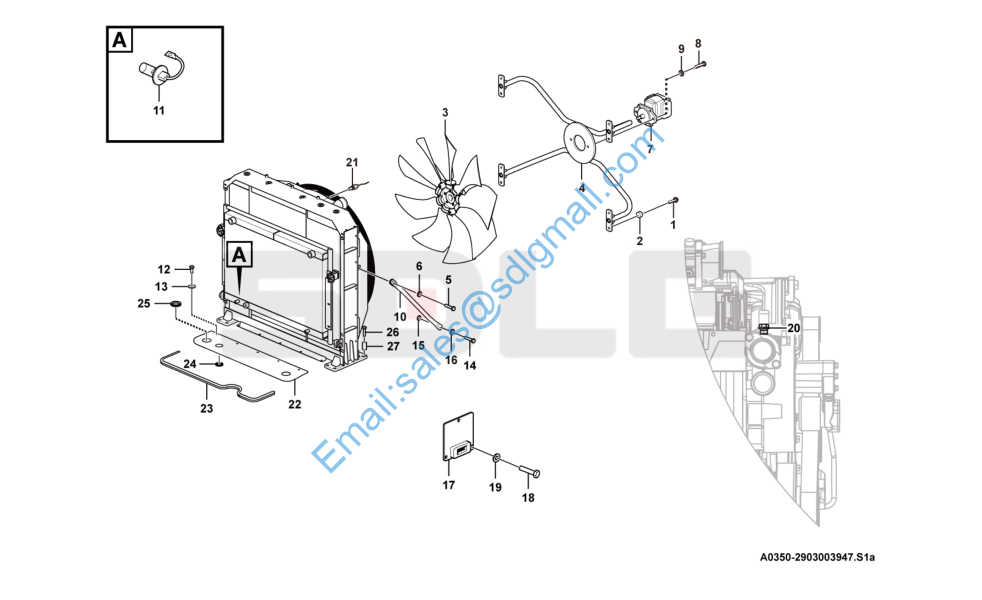

散热器附件 Accessories A0350-2903003947

1 4011001262 螺栓G B5782-M 10*55flZnyc-8.8-480 Bolt Y 8

2 4043002603 防松套LG B331-10*20*16flZnyc-45 Attaching sleeve Y 8

3 4110003752 风扇930/16- Fan Y 1

4 29030039481 马达支架 Bracket Y 1

5 4011001249 螺栓G B5783-M 10*30flZnyc-8.8-480 Screw Y 2

6 4015000426 垫圈G B96.1-10flZnyc-300H V -480 W asher Y 4

7 4120007903 齿轮马达PG M 620A037 Pum p rotor Y 1

8 4011001208 螺栓G B5783-M 12*30flZnyc-10.9-480 Screw Y 2

9 4015000428 垫圈G B97.1-12flZnyc-300H V -480 W asher Y 2

10 29030039501 拉杆800 Link rod Y 2

11 4120002637 水温传感器 Tem perature sensor Y 1

12 4011001246 螺栓G B5783-M 8*16flZnyc-8.8-480 Screw Y 5

13 4015000425 垫圈G B96.1-8flZnyc-300H V -480 W asher Y 5

14 4011001280 螺栓G B5783-M 10*40flZnyc-8.8-480 Screw Y 2

15 4013000394 螺母G B889.1-M 10flZnyc-8-480 N ut Y 2

16 4015000433 垫圈G B97.1-10flZnyc-300H V -480 W asher Y 2

17 4130002606 控制器CM 0711 Control unit Y 1

18 4011001533 螺栓G B5783-M 6*30flZnyc-8.8-480 Bolt Y 2

19 4015000424 垫圈G B97.1-6flZnyc-300H V -480 W asher Y 2

20 4030000545 螺塞JB1000-M 16*1.5EpZn-35 Plug Y 1

21 4120002638 中冷器温度传感器 Tem perature sensor Y 1

22 29030039511 后封板 Cover Y 1

23 4043000957 卡子胶条LG B320-S1300 Sealing strip Y 1

24 29330031081 橡胶套D 50 Rubber sleeve Y 1

25 4043000825 护套LG B313-6*50 Rubber sleeve Y 2

26 4011001429 螺栓G B5782-M 16*70flZnyc-10.9-480 H exagon screw Y 8

27 4043003437 防松套LG B331-16*30*30flZnyc-45 Attaching sleeve Y 8
