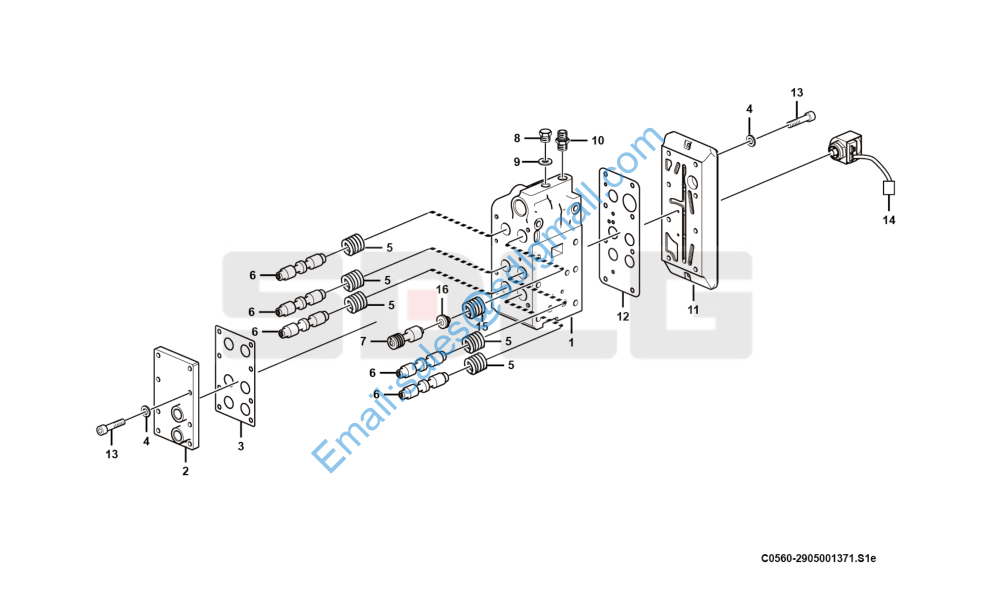

控制阀 Control system C0560-2905001371

1 29050015111 阀块 V alve housing N 1

2 29050015251 盖板 Cover N 1

3 29050015132 密封垫 G asket Y 1

4 4015000213 垫圈G B93-6EpZn-65M n W asher Y 16

5 29050015141 弹簧 Spring Y 5

6 29050015151 阀杆 V alve slide N 5

7 29050015161 阀杆 V alve slide N 1

8 29050015171 螺塞 Plug N 1

9 29120014931 垫圈 W asher Y 1

10 4030000367 测试接头SM K20-M 14×1.5-PC Joint Y 1

11 29050015181 固定座 V alve plate N 1

12 29050015192 密封垫 G asket Y 1

13 4014000278 螺钉G B70.1-M 6*25EpZn-8.8 Screw Y 16

14 29050025362 电磁阀线束总成 Solenoid N 5

15 29050015211 弹簧 Spring Y 1

16 29050015231 弹簧导向套 Spring guide N 1

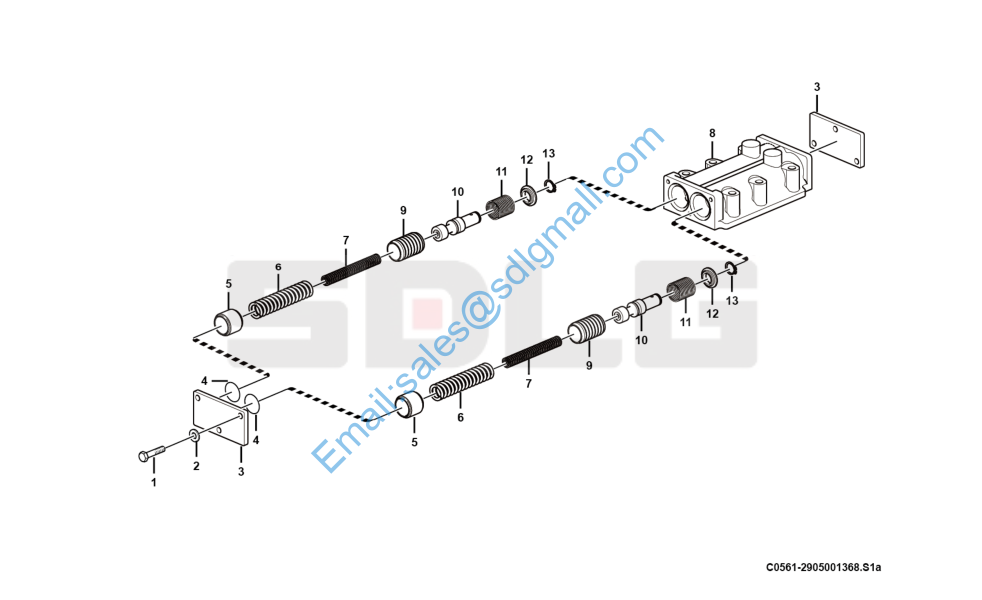

减压阀总成 Pressure reducing valve C0561-2905001368

1 4011000289 螺栓G B5783-M 6*16EpZn-8.8 Bolt Y 6

2 4015000207 垫圈G B97.1-6EpZn-300H V W asher Y 6

3 29050015401 端盖 Cover N 2

4 4030000211 O 形圈G B3452.1-30.0*2.65G O -ring Y 4

5 29050015391 间隔套 Spacer sleeve N 2

6 29050015371 弹簧 Spring Y 2

7 29050015361 弹簧 Spring Y 2

8 29050015351 阀体 V alve housing N 1

9 29050015411 调整塞 Trim m er plug N 2

10 29050015421 阀杆 V alve slide N 2

11 29050015381 弹簧 Spring Y 2

12 29050015431 弹簧导向套 Spring guide N 2

13 4015000295 挡圈G B894.1-14-65M n Retaining ring Y 2
