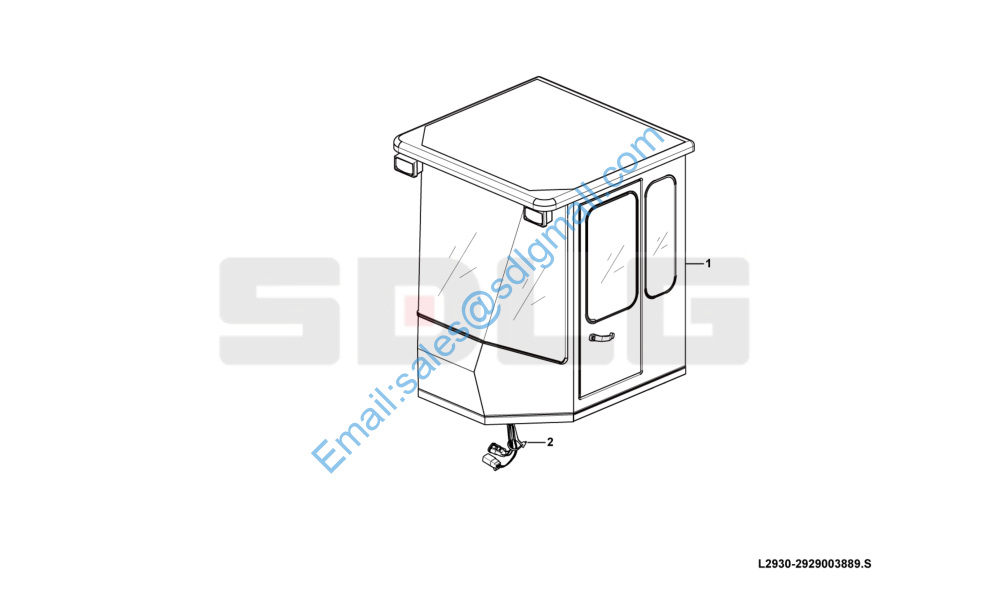

驾驶室总成 Cab assembly L2930-2929003889

1 29290038871 驾驶室本体 Cab N 1
2 29430003301 驾驶室内置电气 Electric equipment N 1

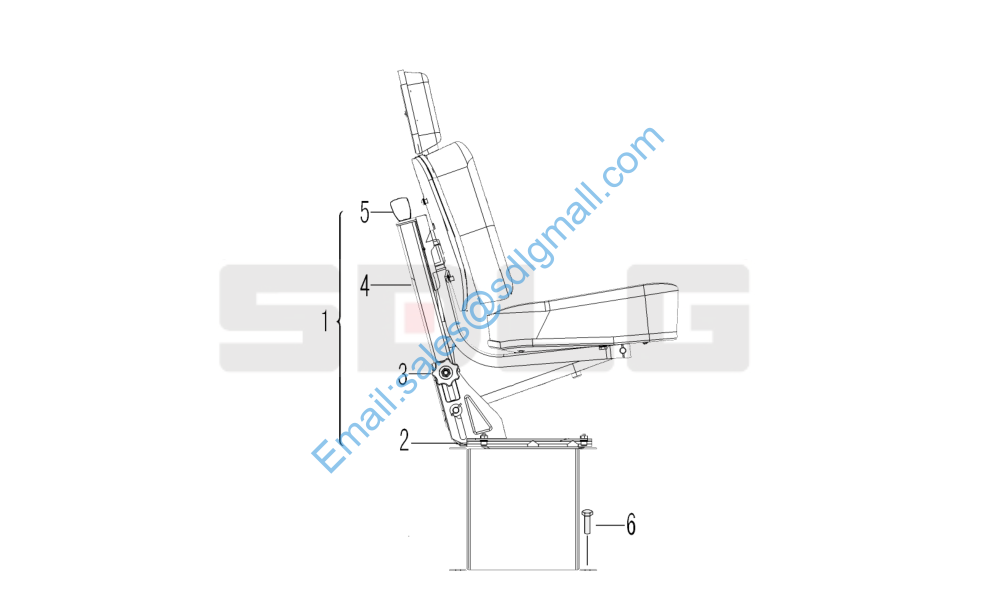

座椅总成 Seat assembly L3000-2930000762

1 4190001054 座椅SN6000-1 Driver s seat Y 1

2 4190001054002 滑轨部件XFZY-2-02 Control slide Y 1

3 4190001054003 高度旋柄XGZY-1-3 Stick handle Y 1

4 4190001054004 弹簧XGZY-1-1.0-1 Damping spring N 2

5 4190001054001 旋柄XGZY-1-1.0.2.1-1 Stick handle Y 1

6 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 4

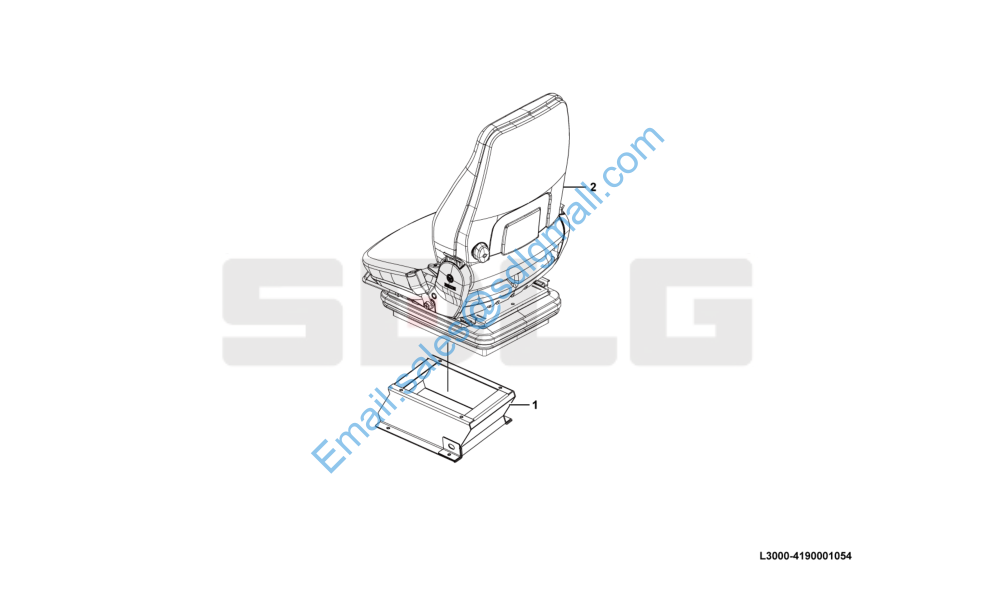

座椅SN6000-1 Driver seat L3000-4190001054

1 4190003573 座椅支架 Seat support N 1
2 4190003574 座椅 Seat N 1

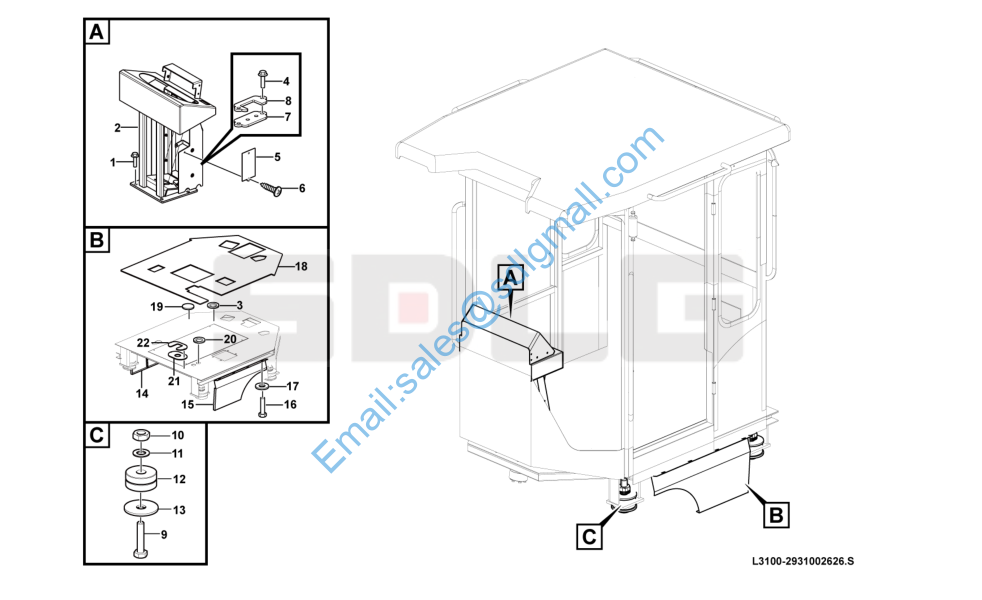

驾驶室附件 Cab accessories L3100-2931002626

1 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 4

2 29310026231 仪表盘支架总成 Bracket Y 1

3 4043000825 护套LGB313-6*50 Rubber sleeve Y 1

4 4011000153 螺栓GB16674-M6*16EpZn-8.8 Bolt Y 4

5 4190000876 保险丝盖 Cover Y 1

6 4190000878 保险丝盖固定螺钉 Screw Y 1

7 29310021211 橡胶板 Mudflap Y 1

8 29310021201 压板 Plate Y 1

9 4011000648 螺栓GB5782-M20*120EpZn-8.8 Bolt Y 4

10 4013000132 螺母GB889.1-M20EpZn-8 Lock nut Y 4

11 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 4

12 4110000459 减震器CBB95-1 Absorber Y 8

13 29050000121 垫圈 Washer Y 4

14 29310021131 左护板总成 Protecting plate Y 1

15 29310021141 右护板总成 Protecting plate Y 1

16 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 8

17 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 8

18 29310021191 垫皮 Rubber mat Y 1

19 29310021181 橡胶盖-45 Rubber cap Y 2

20 29310000091 橡胶套 Rubber sleeve Y 2

21 29310026281 橡胶板 Mudflap Y 1

22 29310026291 压板 Plate Y 1
