L916 SDLG 后车架 Rear frame K2300-2926004041

1 29260040411 后车架 Rear frame Y 1

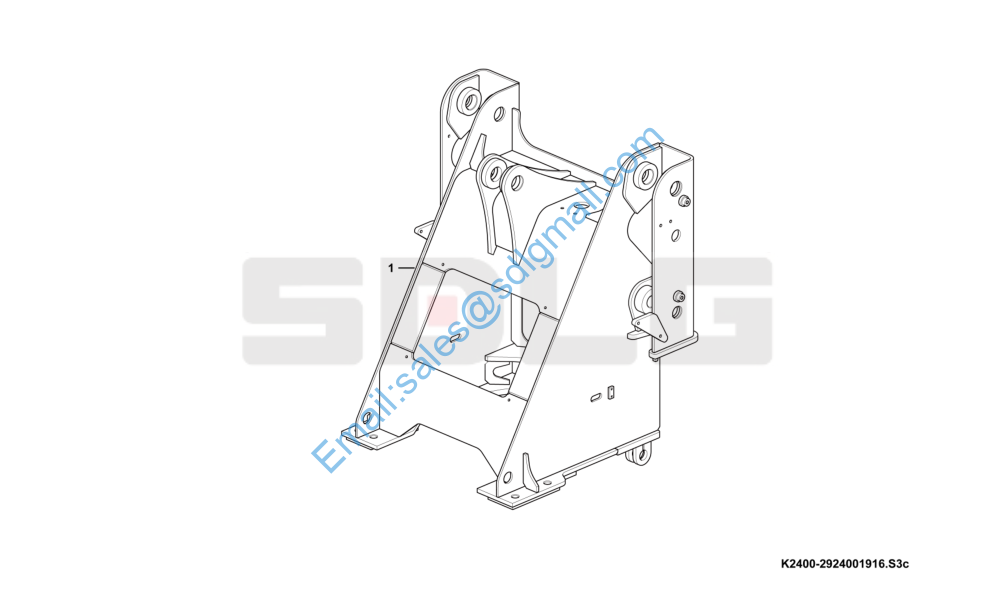

前车架 Front frame K2400-2924001916

1 29240019163 前车架 Front frame Y 1

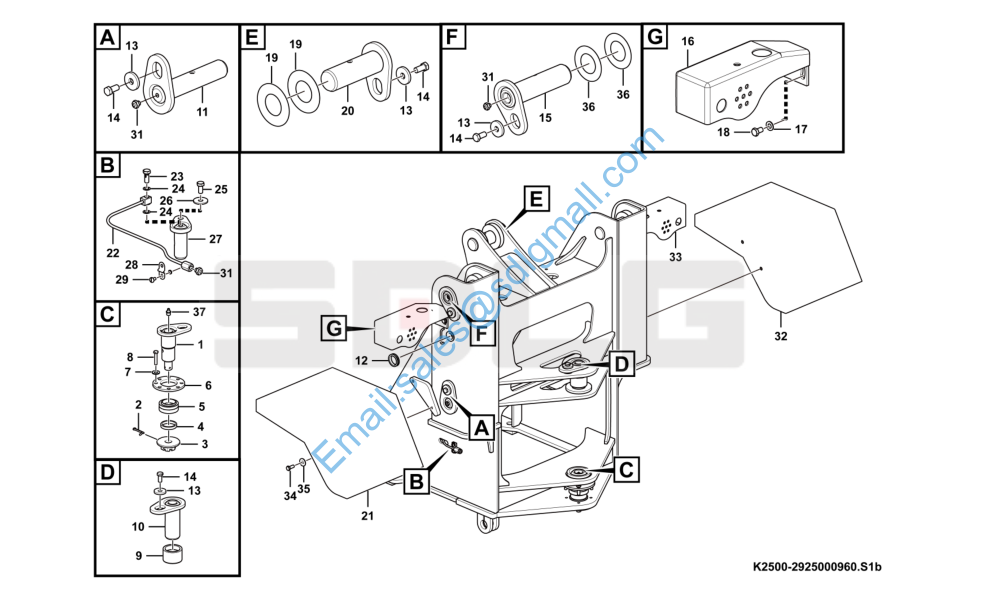

前车架附件 Front frame accessory K2500-2925000960

1 29250013442 下铰接销轴 Pin Y 1

2 4016000308 开口销GB91-5*50EpZn-Q235A Split pin Y 1

3 29250013461 开槽螺母 Nut Y 1

4 29250008951 套 Sleeve Y 1

5 4021000050 关节轴承GB9163-GE50ES-2RS Spherical plain bearing Y 1

6 29250008941 压盘 Flange Y 1

7 4015000025 垫圈GB93-10-65Mn Spring washer Y 4

8 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 4

9 4043000409 轴套LGB302-50*42A2 Bushing Y 1

10 4043000677 销轴LGB301-50f8*75*130G-40Cr Pin Y 1

11 4043000407 销轴LGB301-40*108*200G-40Cr Weld pin Y 2

12 29250001351 走线胶套 Rubber sleeve Y 2

13 4040000001 垫圈LGB001-12 Washer Y 7

14 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 7

15 4043000406 销轴LGB301-50*108*200G-40Cr Weld pin Y 2

16 29250013391 左前灯架 Lamp bracket Y 1

17 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 4

18 4011000080 螺栓GB5783-M10*16EpZn-8.8 Bolt Y 4

19 4043000067 垫片LGB303-50*100*1 Shim Y 2

20 4043000405 销轴LGB301-50*88*160G-40Cr Weld pin Y 1

21 29250008791 左前挡泥瓦 Front fender Y 1

22 29250008861 前转向销油管 Lubricating pipe Y 2

23 29250000291 通油螺栓 Bolt Y 2

24 29250000301 垫片 Shim Y 4

25 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 2

26 4040000008 垫圈LGB001-10 Washer Y 2

27 29250013361 前转向销轴 Pin Y 2

28 29250000311 管夹 Clamp Y 2

29 4014000024 螺钉GB818-M6*10EpZn-4.8 Screw Y 4

30 4015000035 垫圈GB93-6-65Mn Spring washer Y 4

31 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8

32 29250008801 右前挡泥瓦 Front fender Y 1

33 29250013401 右前灯架 Lamp bracket Y 1

34 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 4

35 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 4

36 4043000032 垫片LGB303-50*90*1 Shim Y 4

37 4030000101 油杯JB7940.2-45°M10*1 Lubricating nipple Y 1

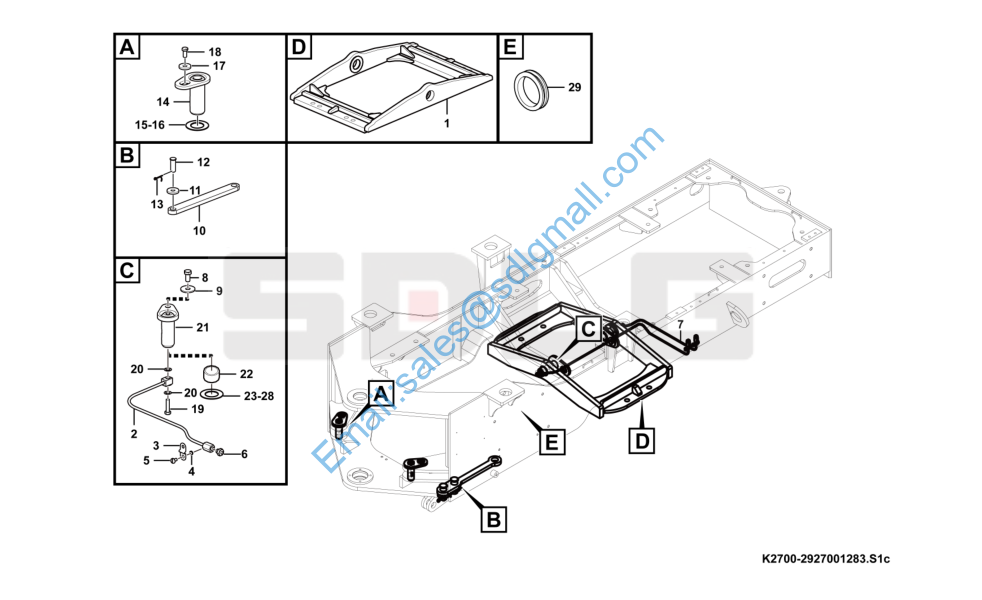

后车架附件 Rear frame and accessories K2700-2927001283

1 29270009771 副车架 Rear axle bridge Y 1

2 29270013291 副车架前油管 Lubricating pipe Y 1

3 29250000311 管夹 Clamp Y 2

4 4015000035 垫圈GB93-6-65Mn Spring washer Y 4

5 4014000024 螺钉GB818-M6*10EpZn-4.8 Screw Y 4

6 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 4

7 29270013301 副车架后油管 Lubricating pipe Y 1

8 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2

9 4040000001 垫圈LGB001-12 Washer Y 2

10 29270009111 锁定杆 Transport lock Y 1

11 4015000119 垫圈GB97.1-30EpZn-300HV Washer Y 2

12 4016000136 销轴GB882-B30*75EpZn-35 Clevis pin Y 2

13 4016000040 开口销GB91-6.3*50EpZn-Q235A Split pin Y 2

14 29270009121 转向销轴 Pin Y 2

15 4043000413 垫片LGB303-30*70*1 Shim Y 4

16 4043000414 垫片LGB303-30*70*2 Washer Y 4

17 4040000008 垫圈LGB001-10 Washer Y 2

18 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 2

19 29250000291 通油螺栓 Bolt Y 2

20 29250000301 垫片 Shim Y 4

21 4043000143 销轴LGB301-40*70R*110-40Cr Weld pin Y 2

22 29270006741 套 Sleeve Y 2

23 29270006761 调整垫片 Shim Y 2

24 29270006751 调整垫片 Shim Y 2

25 29270006771 调整垫片 Shim Y 2

26 29270009281 调整垫片 Shim Y 2

27 29270009291 调整垫片 Shim Y 2

28 29270013151 调整垫片 Shim Y 2

29 29310000061 橡胶套 Rubber sleeve Y 1
