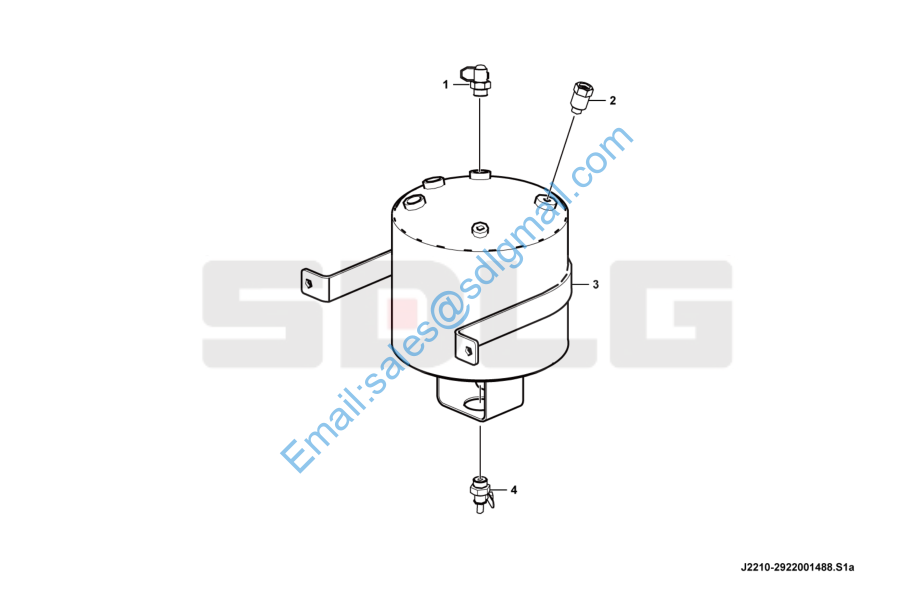

储气罐 Air tank J2210-2922001488

1 4120000742 轮胎充气阀LG09-CQF Tire inflation valve Y 1
2 4120000065 安全阀LG09-AQF Relief valve Y 1
3 29220014871 罐体 Air tank Y 1
4 4120000066 791手动放水阀LG09-FSF Drain valve Y 1

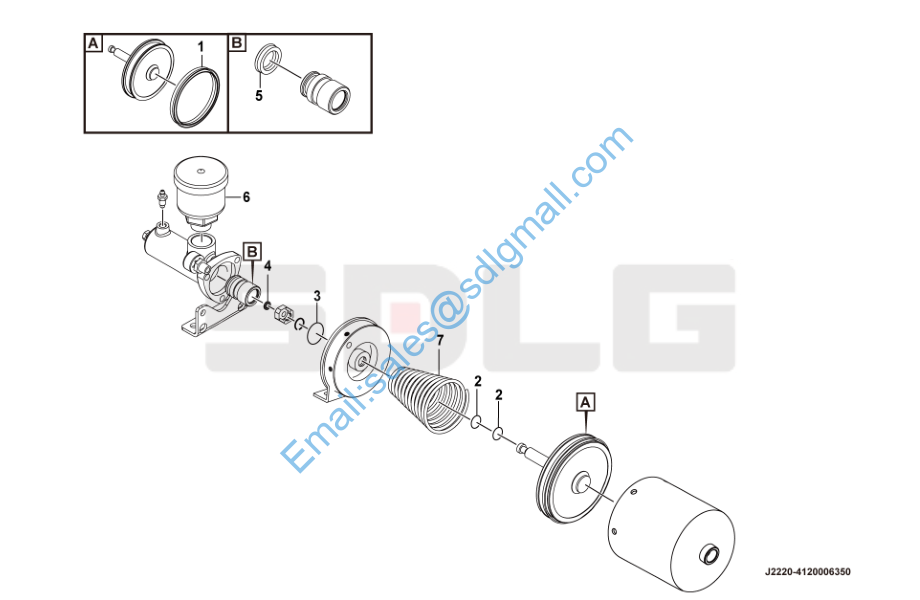

加力泵(330604) Pneumatic cylinder J2220-4120006350

1 4120006350001 密封件包 Sealing ring kit Y 1

2 4120006350001 密封件包 Sealing ring kit Y 2

3 4120006350001 密封件包 Sealing ring kit Y 1

4 4120006350001 密封件包 Sealing ring kit Y 1

5 4120006350001 密封件包 Sealing ring kit Y 1

6 4120006350002 油杯LG40B-06 Cup Y 1

7 4120006350003 回位弹簧LG40A-04 Return spring Y 1

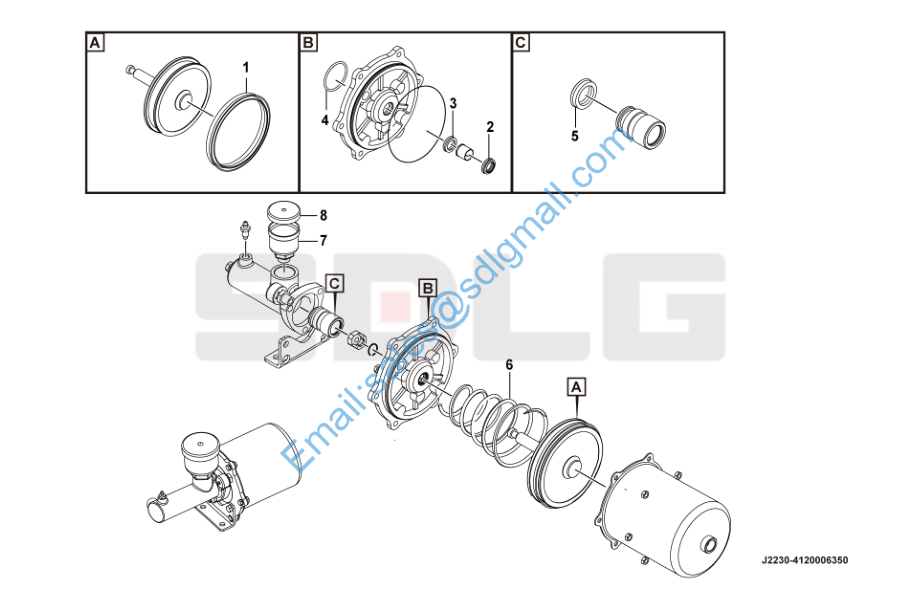

加力泵(340201) Pneumatic cylinder J2230-4120006350

1 4120006349003 密封件包 Sealing ring kit Y 1

2 4120006349003 密封件包 Sealing ring kit Y 1

3 4120006349003 密封件包 Sealing ring kit Y 1

4 4120006349003 密封件包 Sealing ring kit Y 1

5 4120006349003 密封件包 Sealing ring kit Y 1

6 4120006350004 回位弹簧SL509-351003A Return spring N 1

7 4120006349005 油杯体LY60C-3510032 Cup N 1

8 4120006349006 油杯盖SL409LY-3510011 Cover N 1

加力泵(46455) Pneumatic cylinder J2240-4120006350

1 4120001985006 塑料堵盖HP3.5-40-41 M12*1.2 Plastic plug Y 1

2 4120000675503 端盖 HP3.5-90C-03 Cover Y 1

3 4120000675504 密封件包 Sealing kit Y 1

4 4120000675505 油缸 HP3.5-90C-01B Cylinder Y 1

5 4014000055 螺钉GB70.1-M12*30EpZn-8.8 Screw Y 1

6 4120000675506 油缸活塞头 HP3.5-90C-02A-02 Brake piston Y 1

7 4120001985010 阀杆 HP3.5-40-04 Valve rod Y 1

8 4120001985011 阀门 HP3.5-40-05 Valve Y 1

9 4120001985012 进油接头HP3.5-40-11 Nipple Y 1

10 4120001985013 进油阀衬套 HP3.5-40-08A Bushing Y 1

11 4120001985014 进油阀弹簧HP3.5-40-06 Spring Y 1

12 4120001985015 进油阀弹簧座HP3.5-40-07 Spring seat Y 1

13 4015000282 垫圈GB93-3-65Mn Washer Y 1

14 4014000581 P-螺钉GB818-M3*5EpZn-4.8 Screw Y 1

15 4120001985016 油杯滤网HP3.5-40-16B Strainer Y 1

16 4120001985017 油杯膜片HP3.5-40-14 Diaphragm Y 1

17 4120001985018 油杯盖HP3.5-40-15A M85*2 Cover Y 1

18 4120001985019 螺母M27*1.5 Nut Y 1

19 4120000675504 密封件包 Sealing kit Y 2

20 4120001985020 油杯体HP3.5-40-17FT Cup Y 1

21 4120000675507 连接圈HP3.5-90-04D Attaching frame Y 1

22 4120001985027 呼吸螺栓总成HP.FC-00 Bolt Y 1

23 4120000675508 汽缸体HP3.5-90-07 Cylinder block Y 1

24 4015000485 P-垫圈GB7244-8 Washer Y 6

25 4011000632 螺栓GB5783-M8*16-8.8 Bolt Y 6

26 4120000675504 密封件包 Sealing kit Y 1

27 4016000377 P-销GB119.2-3*8 Pin Y 1

28 4013000428 P-螺母GB810-M45*1.5EpZn-8 Nut Y 1

29 4120000675509 汽缸回位弹簧HP3.5-90-05D Spring Y 1

30 4120000675504 密封件包 Sealing kit Y 1

31 4120000675510 汽缸活塞体HP3.5-60-20 Piston Y 1

32 4120000675511 推盘HP3.5-60-09C Disc Y 1

33 4014000136 螺钉GB70.1-M12*40EpZn-8.8 Screw Y 1

34 4015000026 垫圈GB93-12-65Mn Spring washer Y 2

35 4120000675512 塑料堵盖HP3.5-40-42 M22*1.5 Plastic plug Y 1

36 4120000675513 油缸活塞杆HP3.5-90C-02A-01 Piston rod Y 1

37 4120000675504 密封件包 Sealing kit Y 1

38 4120000675514 油缸O形圈挡圈HP3.5-60-04-01 Retaining ring Y 1

39 4120000675504 密封件包 Sealing kit Y 1

40 4120000675515 Y形密封圈支撑环HP3.5-60-06A-01 Support ring Y 1

41 4120000675504 密封件包 Sealing kit Y 1

42 4120000675516 导向环HP3.5-60-03 Guide ring Y 2

43 4120000675517 标牌BP-SDLG-01 Name plate N 1

44 4019000001 铆钉GB827-2*4-BL2 Rivet Y 2

45 4120000675518 支架HP3.5-90-06B(YT) Bracket Y 1

46 4011001196 螺栓GB5783-M14*25EpZn-10.9 Screw Y 3

47 4015000027 垫圈GB93-14-65Mn Spring washer Y 3
