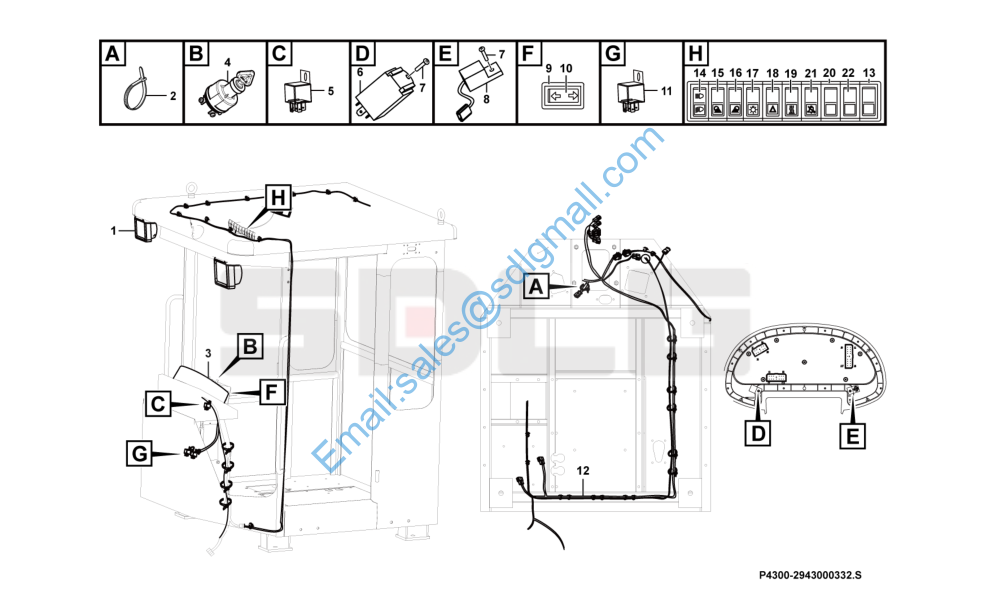

Cab electric system P4300-2943000332

1 4130001685 工作灯148*86-H3-24V Lamp Y 2

2 4190001839 扎丝LG13-ZS4*160 Cable tie Y 20

3 4130001717 仪表盘ZL2-256T Display panel Y 1

4 11217633 启动开关 Starter switch Y 1

5 4130000869 中间继电器024-1Z6GD2 Relay Y 1

6 4130000587 蜂鸣器SFM-27 Buzzer N 1

7 4014000066 螺钉GB845-ST4*10-C-H Screw Y 2

8 4130000022 闪光器SG252 Flasher unit Y 1

9 4130000572 独立单框架JK931-01DKJ Switch panel Y 1

10 4130002499 转向开关JK939-B01ZX-H Rocker switch Y 1

11 4130000912 蓄电池继电器024-1H2T-80A Relay Y 2

12 29430003332 仪表台线束 Cable harness Y 1

13 4130000498 侧边单框架JK931-01CKJ Switch panel Y 2

14 4130000555 前大灯开关JK931-01QDD Rocker switch Y 1

15 4130000491 后照灯开关JK931-01HZD Rocker switch N 1

16 4130000490 前照灯开关JK931-01QZD Rocker switch Y 1

17 4130000489 背光灯开关JK931-01BGD Rocker switch Y 1

18 4130000492 警示灯开关JK931-01JSD Rocker switch Y 1

19 4130000514 暖风机开关JK931-01NFJ Rocker switch Y 1

20 4130000497 中间单框架JK931-01ZKJ Switch panel Y 8

21 4130001052 静音开关JK931-01JY Rocker switch Y 1

22 4130000496 盖板JK931-01GB Cover plate Y 2

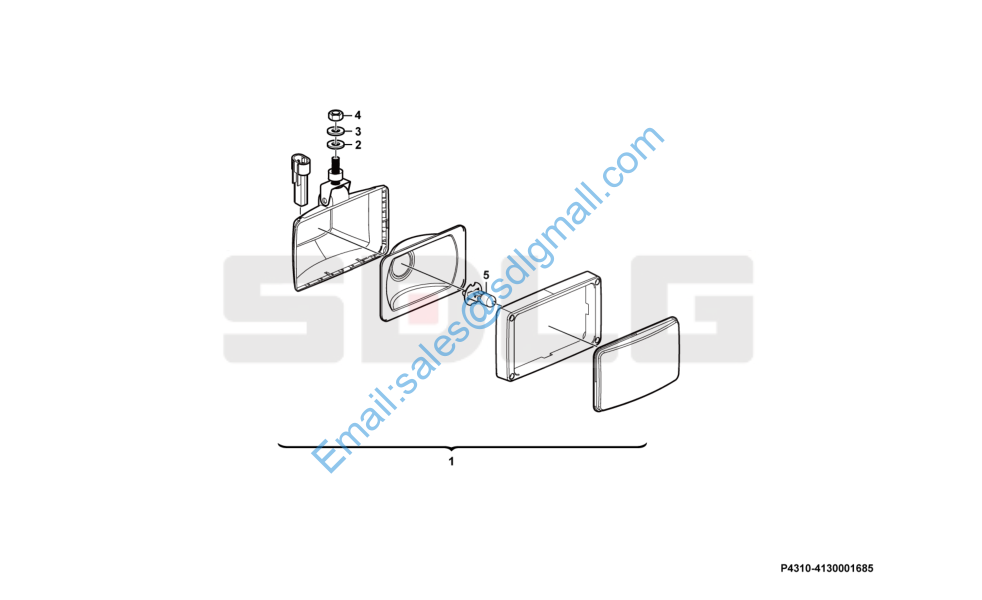

Work lamp P4310-4130001685

1 4130001685 工作灯148*86-H3-24V Lamp Y 1

2 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 1

3 4015000025 垫圈GB93-10-65Mn Spring washer Y 1

4 4013000005 螺母GB6170-M10EpZn-10 Nut Y 1

5 4130000620 灯泡PHILIPS 13336 H3 Bulb Y 1
