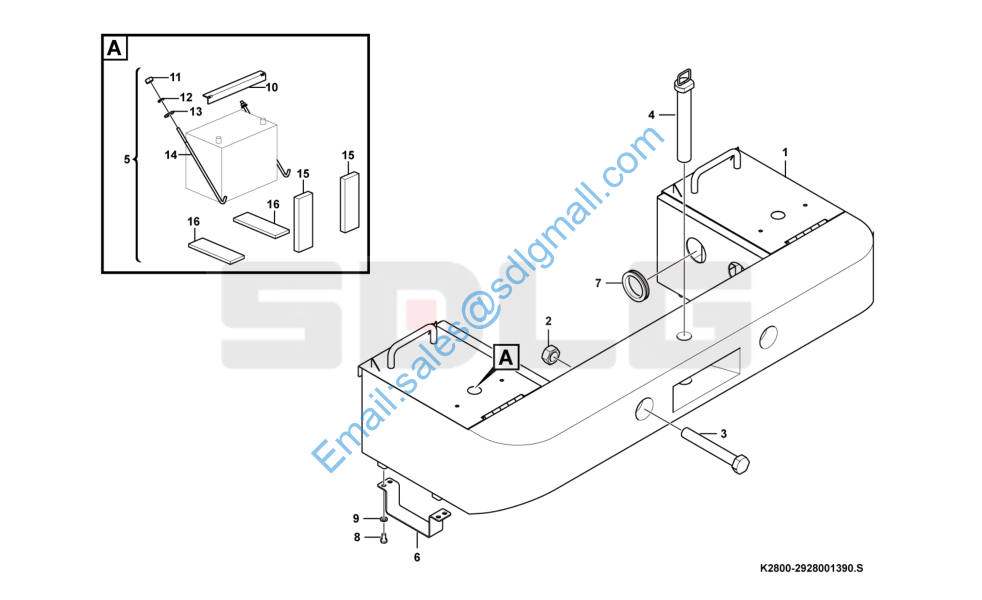

配重 Counter weight K2800-2928001390

1 29280013911 平衡铁 Counterweight Y 1

2 4013000064 螺母GB889.2-M30*2EpZn-8 Lock nut Y 2

3 4011000120 螺栓GB5785-M30*2*215EpZn-8.8 Bolt Y 2

4 29280007541 牵引销 Towing pin Y 1

5 29340029671 电瓶固定组件 Bracket N 2

6 29280012611 踏脚支架 Plate Y 2

7 29030011451 橡胶套D70 Rubber sleeve Y 4

8 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 8

9 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 8

10 29340006931 锁紧角钢 Corner steel Y 1

11 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

12 4015000036 垫圈GB93-8-65Mn Spring washer Y 2

13 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

14 29340009121 锁紧螺杆 Bolt Y 2

15 29340029681 侧胶垫 Rubber mat Y 1

16 29340006821 下胶垫 Rubber mat Y 2

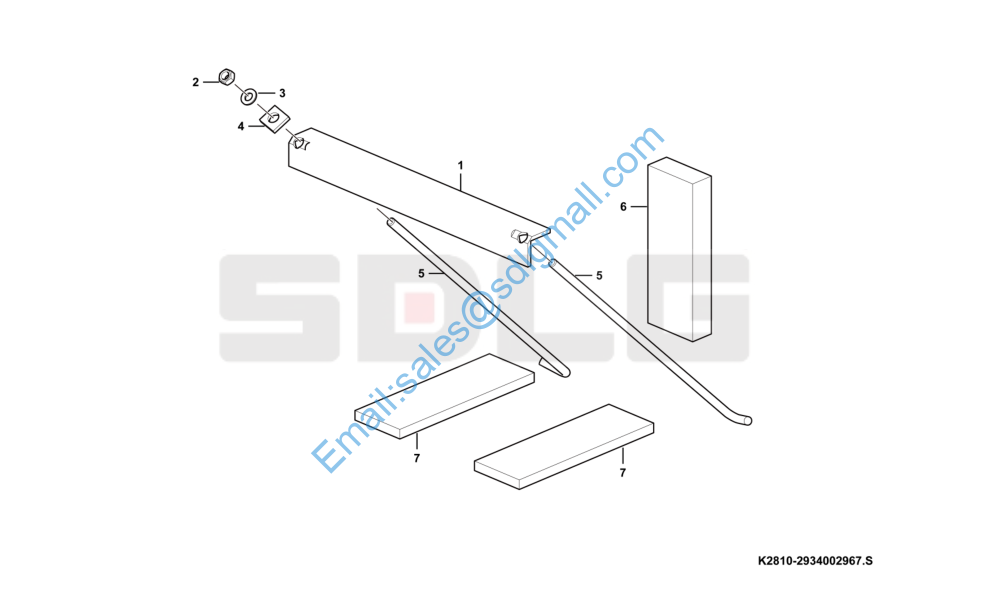

电瓶固定组件 Bracket K2810-2934002967

1 29340006931 锁紧角钢 Corner steel Y 1

2 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

3 4015000036 垫圈GB93-8-65Mn Spring washer Y 2

4 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

5 29340009121 锁紧螺杆 Bolt Y 2

6 29340029681 侧胶垫 Rubber mat Y 1

7 29340006821 下胶垫 Rubber mat Y 2
