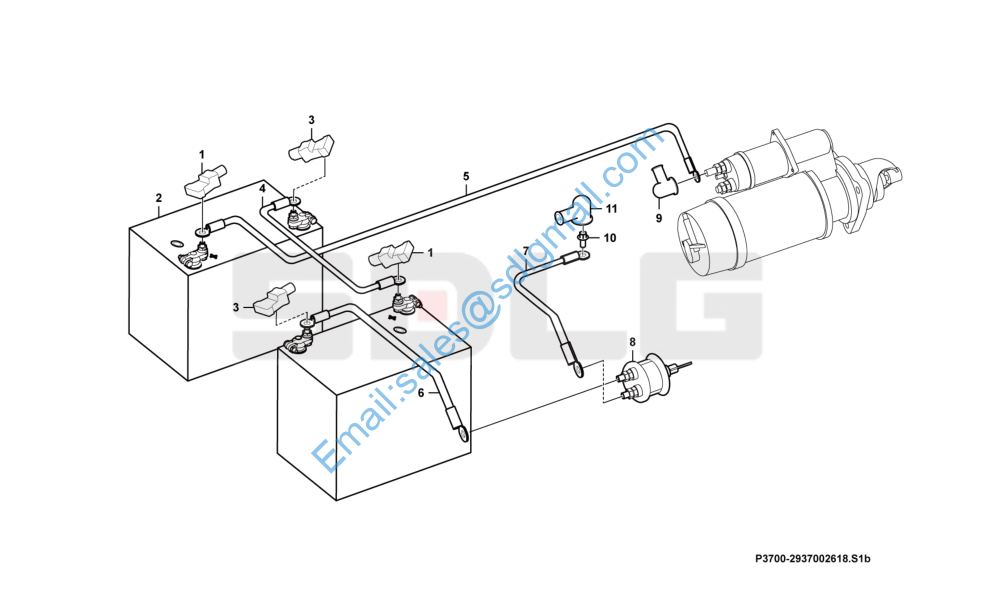

Electric assembly-power P3700-2937002618

1 29370016691 电瓶线绝缘帽 Cable sleeve Y 2

2 4130000045 蓄电池6-QW-70 Wet battery Y 2

3 29370016701 电瓶线绝缘帽 Cable sleeve Y 2

4 29370016661 电瓶线P50X1600 Battery cable Y 1

5 4045000014 电瓶线LGB340-50*1200A1L10L10-1L2 Battery cable Y 1

6 29370020931 电瓶线P50*550 Battery cable Y 1

7 29370014291 电瓶线A50*350 Battery cable Y 1

8 4130000427 电源开关K01K18-A Battery switch Y 1

9 26370002451 红电瓶线护套 Cable sleeve Y 1

10 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1

11 26370002441 黑电瓶线护套 Cable sleeve Y 1

前车架电气总成 Front frame electric system P4100-2941000147

1 4011000152 螺栓GB16674-M6*10EpZn-8.8 Bolt Y 2

2 4130002557 盆型喇叭DL125-100L-01 Horn Y 1

3 4130001374 前组合灯YSP-003L Lamp Y 1

4 4190001839 扎丝LG13-ZS4*160 Cable tie Y 16

5 29410001481 前车架线束 Cable harness Y 1

6 4130002556 盆型喇叭DL125-100H-01 Horn Y 1

7 4130001373 前组合灯YSP-003R Lamp Y 1

8 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 1

后车架电气总成 Rear frame electric assembly P4200-2942000315

1 4130001134 后尾灯LRHD-24V Tail light Y 2

2 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 3

3 4190001839 扎丝LG13-ZS4*160 Cable tie Y 30

4 29420003162 后车架线束 Cable harness Y 1

5 4130001132003 白色灯罩 Lamp shroud N 2

6 29370022731 插件支架 Bracket Y 1

7 4130001412 制动压力开关YK-ZD Pressure switch Y 1

8 4130000202 温度传感器WDG1371 Temperature sensor Y 1

9 4130001300 压力开关YK215B1 Pressure switch Y 1

10 4130001294 隔膜式压力开关310-LGK1 Pressure switch Y 1

11 4130000915 灯泡PHILIPS 13499(24V 21W/5W) Bulb Y 2

12 4130000618 灯泡PHILIPS 13498(24V 21W) Bulb Y 2

13 4130000916 灯泡PHILIPS 13814(24V 10W) Bulb Y 2

14 4130001132001 琥珀色灯罩 Lamp shroud N 2

15 4130001132002 红色灯罩 Lamp shroud N 2

驾驶室内置电气 Cab electric system P4300-2943000330

1 4190000608 电风扇 Fan Y 1

2 4014000198 螺钉GB818-M6*35EpZn-4.8 Screw Y 3

3 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 5

4 4130001413 室内灯24-6212-24V Lamp Y 1

5 4014000040 螺钉GB818-M6*20EpZn-4.8 Screw Y 2

6 29430003311 驾驶室线束 Cable harness Y 1
