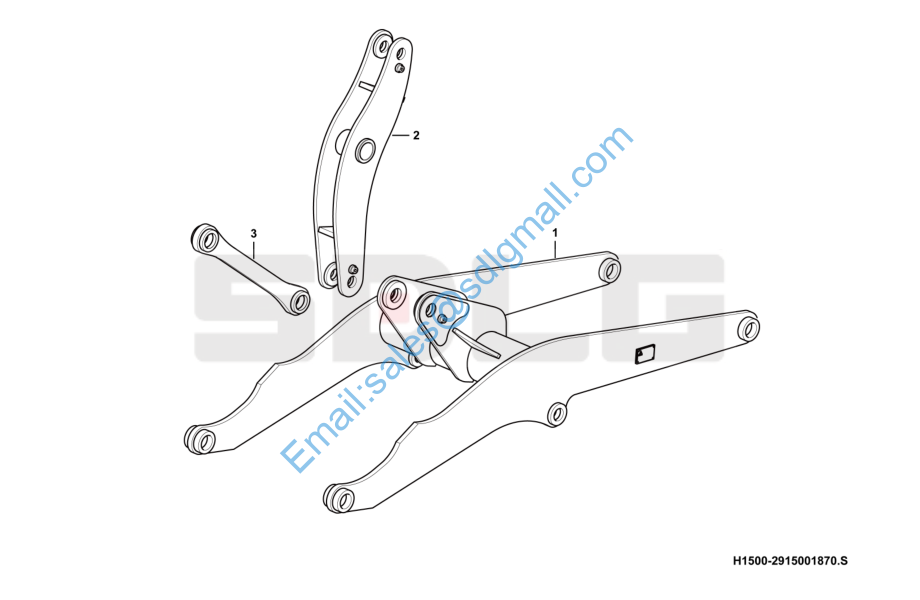

连杆机构 Linkage structure H1500-2915001870

1 29150018631 动臂 Lifting arm Y 1
2 29150011161 摇臂 Rocker arm Y 1
3 29150018601 连杆 Connecting rod Y 1

工作装置附件 Working equipment H1600-2916000967

1 4043000401 轴套LGB302-50*82A2 Bushing Y 4

2 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 8

3 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 8

4 4043000661 销轴LGB301-40*75*135/2G-40Cr Weld pin Y 2

5 4043000404 轴套LGB302-40*58A2 Bushing Y 2

6 4043000293 垫片LGB303-40*95*1 Shim Y 4

7 4043000403 轴套LGB302-60*159A2 Bushing Y 1

8 4043000151 垫片LGB303-60*120*1 Shim Y 2

9 4043000067 垫片LGB303-50*100*1 Shim Y 4

10 4043000397 销轴LGB301-50*100*185-40Cr Weld pin Y 3

11 4043000398 销轴LGB301-50*88*155-40Cr Weld pin Y 2

12 4043000399 销轴LGB301-60*145*275/2-40Cr Weld pin Y 1

13 4043000402 轴套LGB302-50*64A2 Bushing Y 2

14 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8
