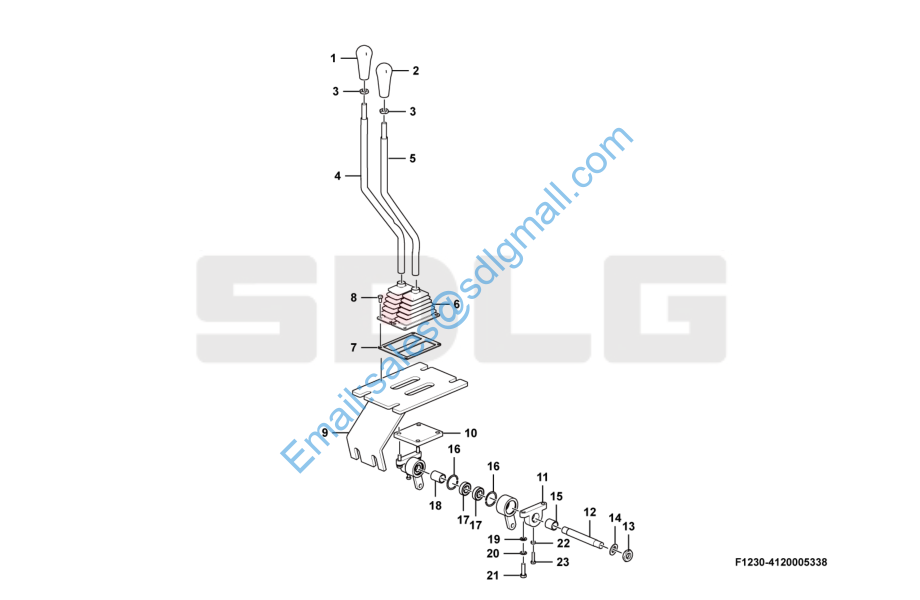

L916 操纵机构(130501) Control mechanism F1230-4120005338

1 4120002148001 动臂手球LGC9530001 Handle ball Y 1

2 4120002148002 铲斗手球LGC9530002 Handle ball Y 1

3 4013000046 螺母GB6172.1-M12EpZn-05 Nut Y 2

4 4120005338001 动臂杆焊合件4120005338-1 Control lever Y 1

5 4120005338002 铲斗杆焊合件4120005338-2 Control lever Y 1

6 4120002149004 防尘套LGC9180006 Rubber sleeve Y 2

7 4120005338003 防尘套垫4120005338-3 Rubber mat Y 1

8 4011000423 螺栓GB5783-M6*12EpZn-8.8 Screw Y 4

9 4120005338004 操纵支架焊合件4120005338-4 Bracket Y 1

10 4120005338005 垫板 Plate Y 1

11 4120002148012 轴座LGC9530008 Seat Y 2

12 4120005338006 轴4120005338-6 Shaft Y 1

13 4013000123 螺母GB6173-M16*1.5EpZn-05 Nut Y 2

14 4015000181 垫圈GB97.1-16EpZn-300HV Washer Y 2

15 4120002148011 轴套LGC9530010 Bushing Y 2

16 4015000324 挡圈GB893.1-28-65Mn Retaining ring Y 4

17 4120002148009 6003轴承ZC-002 Bearing Y 4

18 4120005338007 轴套4120005338-7 Bushing Y 1

19 4015000036 垫圈GB93-8-65Mn Spring washer Y 4

20 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 4

21 4011000107 螺栓GB5783-M8*30EpZn-8.8 Bolt Y 4

22 4013000028 螺母GB6170-M6EpZn-8 Nut Y 2

23 4011000101 螺栓GB5783-M6*20EpZn-8.8 Bolt Y 2
