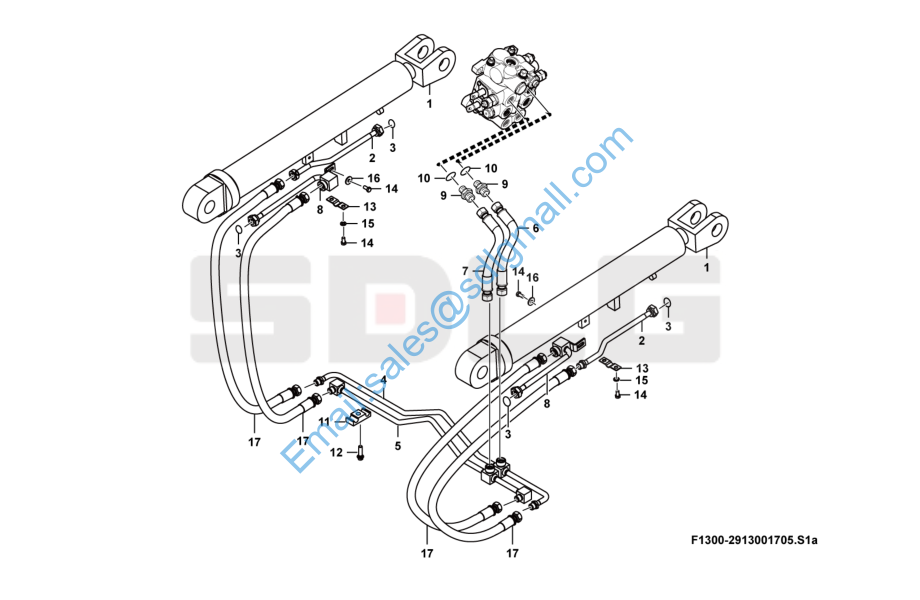

L916 举升缸总成 Lift cylinder F1300-2913001705

1 4120005335 动臂油缸HSGL-80*50*582-912 Lifting cylinder Y 2

2 29130017181 举升缸小腔钢管 Pipe Y 2

3 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 4

4 29130017061 举升联小腔钢管 Pipe Y 1

5 29130017101 举升联大腔钢管 Pipe Y 1

6 4041002067 软管LGB127-010064 Hose assembly Y 1

7 4041001815 软管LGB127-010066 Hose assembly Y 1

8 29130017141 举升缸大腔钢管 Pipe Y 2

9 4041001040 直接头LGB155-02726 Joint Y 2

10 4030000090 O形圈GB3452.1-28.0*2.65G O-ring Y 2

11 29130017221 压板 Plate Y 2

12 4011000164 螺栓GB16674-M10*35EpZn-8.8 Bolt Y 2

13 29130017211 管夹 Hose clamp Y 2

14 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 6

15 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 4

16 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 2

17 4041002068 软管LGB127-005101 Hose assembly Y 4

动臂油缸 Lifting cylinder F1310-4120005335

1 4120005335010 活塞杆总成24A111000 Piston rod Y 1

2 4120006315008 固定座24C003010 Seat Y 1

3 4120001153026 钢丝挡圈-孔用24C001090 D65.6*2t Retaining ring Y 1

4 4120005996005 密封件-防尘24D205002 Sealing ring N 1

5 4120004762009 密封件-活塞杆24FA05061 Sealing ring N 1

6 4120005963004 支承环24G305041 Sealing ring N 1

7 4120005168009 斯特封24F905001 Sealing ring N 1

8 4120005335011 缸盖24A170270 Cover Y 1

9 4120005559008 O形圈24K307311 O-ring N 1

10 4120006310009 O形圈24K308001 O-ring N 1

11 4120005168014 O形圈24K305021 O-ring N 1

12 4120005335012 活塞24A180410 Piston Y 1

13 4120006316009 钢球24U004501 D4.5 Ball N 1

14 4120005335013 螺钉-内六角平端紧定 24T606121 Screw Y 1

15 4120005020023 纳污环80*72*4 24N008012 Sealing ring N 2

16 4120005559010 密封件-活塞24P408014 Sealing ring N 1

17 4120005559012 支承环24G208021 Sealing ring N 1

18 4120005335015 缸筒总成24A131450 Cylinder tube Y 1

19 4120005335016 轴套24C034180 Bushing Y 1

20 4120005335017 密封件包24A100210S Sealing kit Y 1
