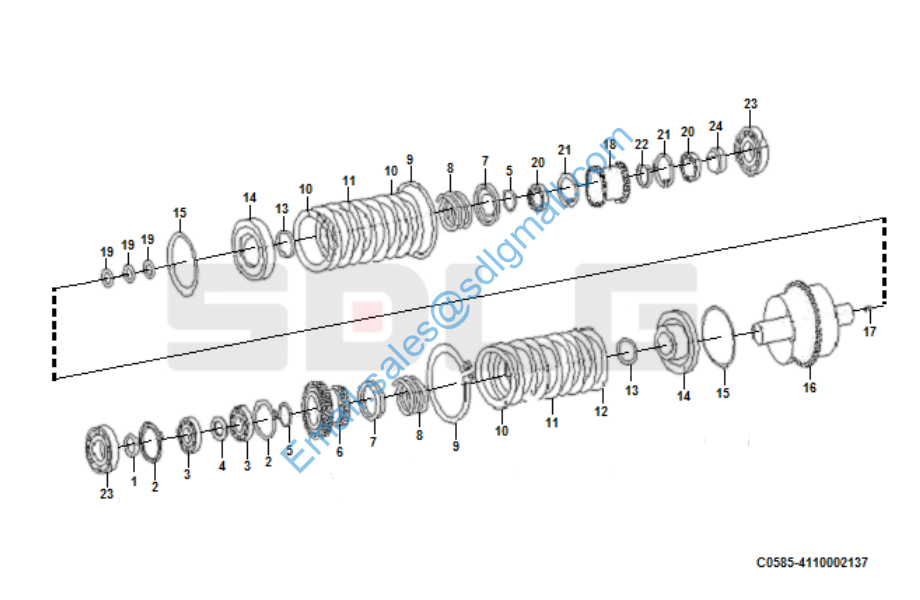

L916 SDLG 前进低档离合器(370710) Go forward low-end clutch C0585-4110002137 倒退高档离合器(370710) Backward high-end clutch 总成编号/Assembly NO. C0586-4110002137

1 4110002137001 垫圈ZL15.5.1-12 Washer Y 1

2 4021000190 止动环GB305-80/86.6 Retaining ring Y 2

3 4021000170 P轴承GB276-6208N Ball bearing Y 2

4 4110002137002 挡圈ZL15.5.1-1 Retaining ring Y 1

5 4015000046 挡圈GB894.1-50-65Mn Retaining ring Y 2

6 4110002137003 齿轮ZL15.5.1-2 Gear Y 1

7 4110002137004 弹簧座圈ZL50D.21.1-6 Spring seat Y 2

8 4110002137005 离合器弹簧ZL15.5.1-5 Spring Y 2

9 4015000300 挡圈GB893.1-150-65Mn Retaining ring Y 2

10 4110002137006 离合器活塞压板ZL15.5.1-3 Plate Y 2

11 4110002137007 离合器被动片ZL15.5.1-4 Friction disc Y 8

12 4110002137008 离合器主动片ZL15.5.1.3 Friction disc Y 8

13 4030000035 O形圈GB3452.1-53.0*5.30G O-ring Y 2

14 4110002137009 活塞ZL15.5.1.1-1 Piston Y 2

15 4110002137010 外封环ZL15.5.1.1-3 Sealing ring Y 2

16 4110002137011 前进低档离合器壳体ZL15.5.1.2 Housing Y 1

17 4110002137012 内六角螺塞 ZG1/8 Plug Y 2

18 4110002137013 齿轮ZL15.5.1-6 Gear Y 1

19 4110002137014 密封环ZL15.5-36 Sealing ring Y 3

20 4021000009 滚动轴承GB276-6008 Ball bearing Y 2

21 4015000199 挡圈GB893.1-68-65Mn Retaining ring Y 2

22 4110002137015 挡圈ZL15.5.1-7 Retaining ring Y 1

23 4021000021 滚动轴承GB276-6308 Ball bearing Y 2

24 4110002137016 挡环 ZL15.5.1-10 Retaining ring Y 1

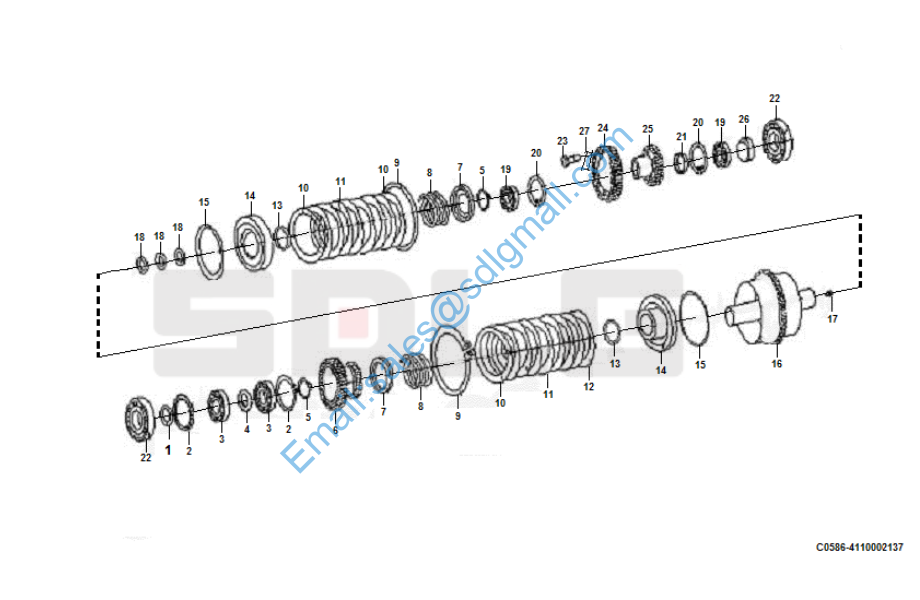

倒退高档离合器(370710) Backward high-end clutch 总成编号/Assembly NO. C0586-4110002137

1 4110002137001 垫圈ZL15.5.1-12 Washer Y 1

2 4021000190 止动环GB305-80/86.6 Retaining ring Y 2

3 4021000170 P轴承GB276-6208N Ball bearing Y 2

4 4110002137002 挡圈ZL15.5.1-1 Retaining ring Y 1

5 4015000046 挡圈GB894.1-50-65Mn Retaining ring Y 2

6 4110002137019 齿轮 ZL15.5.1-2 Gear N 1

7 4110002137004 弹簧座圈ZL50D.21.1-6 Spring seat Y 2

8 4110002137005 离合器弹簧ZL15.5.1-5 Spring Y 2

9 4015000300 挡圈GB893.1-150-65Mn Retaining ring Y 2

10 4110002137006 离合器活塞压板ZL15.5.1-3 Plate Y 2

11 4110002137007 离合器被动片ZL15.5.1-4 Friction disc Y 8

12 4110002137024 离合器主动片ZL15.5.1.3 Friction disc Y 8

13 4030000035 O形圈GB3452.1-53.0*5.30G O-ring Y 2

14 4110002137009 活塞ZL15.5.1.1-1 Piston Y 2

15 4110002137026 密封环ZL15.5.1-8 Sealing ring Y 2

16 4110002137027 倒退高档离合器壳体ZL15.5.2.1 Housing Y 1

17 4110002137028 内六角螺塞ZG1/8 07043-00108 Plug Y 2

18 4110002137029 外封环ZL15.5-36 Sealing ring Y 3

19 4021000017 滚动轴承GB276-6209 Ball bearing Y 2

20 4015000016 挡圈GB893.1-85-65Mn Retaining ring Y 2

21 4110002137030 挡环 ZL15.5.2-1 Retaining ring Y 1

22 4021000021 滚动轴承GB276-6308 Ball bearing Y 2

23 4011000747 螺栓GB5783-M12*30EpZn-10.9 Screw Y 6

24 4110002137031 齿轮ZL15.5.2.2-1 Gear Y 1

25 4110002137032 齿轮 ZL15.5.2.2-2 Gear Y 1

26 4110002137033 隔套ZL15.5.2-2 Sleeve Y 1

27 4110002137034 止动垫ZL15.5.2.2-3 Retaining ring N 3

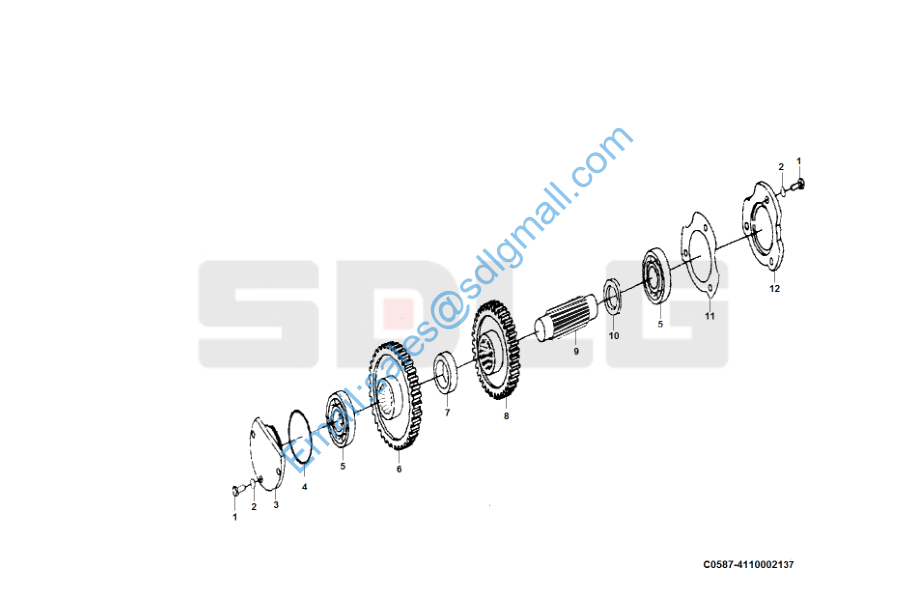

中间轴部件(370710) Dummy shaft parts i

1 4011000763 螺栓GB5783-M10*30EpZn-10.9 Bolt Y 6

2 4015000025 垫圈GB93-10-65Mn Spring washer Y 6

3 4110002137035 端盖 ZL15.5-21 Cover Y 1

4 4110002137086 O型圈GB3452.1-90*3.1 O-ring Y 1

5 4021000021 滚动轴承GB276-6308 Ball bearing Y 2

6 4110002137036 中间轴大齿轮 ZL15.5-17 Gear Y 1

7 4110002137037 隔环ZL15.5-19 Spacer ring Y 1

8 4110002137038 中间轴小齿轮 ZL15.5-20 Gear Y 1

9 4110002137039 中间轴ZL15.5-6 Shaft Y 1

10 4110002137040 挡圈ZL15.5-7 Retaining ring Y 1

11 4110002137041 压盖 ZL15.5-5 Plate Y 1

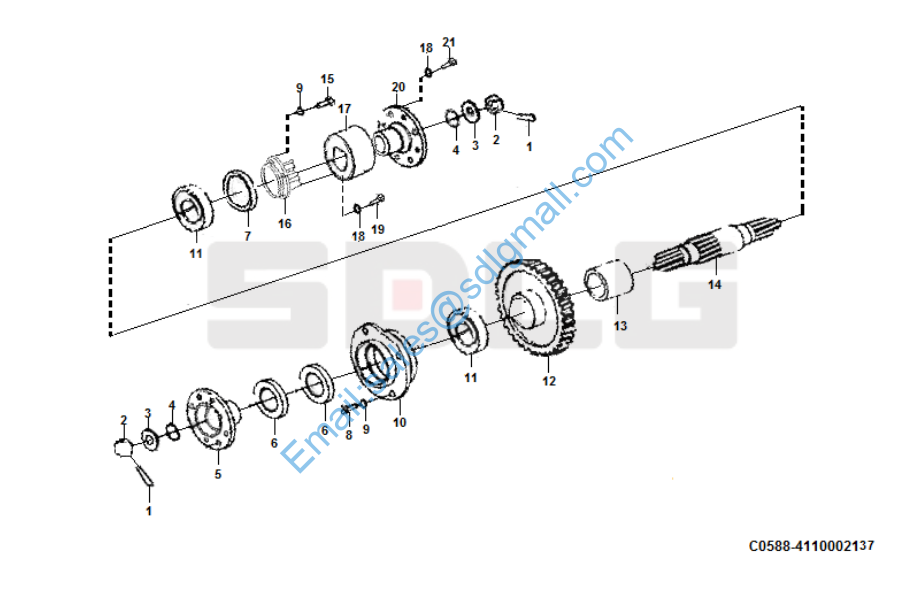

输出轴部分(370710) Output shaft part

1 4110002137087 开口销GB91-4*40 Split pin Y 2

2 4110002137042 螺母M20*1.5 ZL15.5-8 Nut Y 2

3 4110002137043 垫圈ZL15.5-12B Washer Y 2

4 4030000178 O形圈GB3452.1-30.0*3.55G O-ring Y 2

5 4110002137044 输出法兰ZL15F-05 Flange Y 1

6 4110002137088 油封GB13871-50*80*12 Sealing ring Y 2

7 4110002137089 油封GB13871-46*80*10 Sealing ring Y 2

8 4011000747 螺栓GB5783-M12*30EpZn-10.9 Screw Y 8

9 4015000026 垫圈GB93-12-65Mn Spring washer Y 8

10 4110002137045 输出轴承座ZL15.5-9 Bearing seat Y 1

11 4021000171 P轴承GB297-30308 Roller bearing Y 2

12 4110002137046 输出齿轮ZL15.5-16 Gear Y 1

13 4110002137047 隔套ZL15.5-15 Spacer sleeve Y 1

14 4110002137048 输出轴ZL15F-10 Shaft Y 1

15 4011000090 螺栓GB5783-M12*35EpZn-8.8 Bolt Y 4

16 4110002137049 制动器座ZL15F-06.01 Seat Y 1

17 4110002137050 制动器总成DFX.2-15A Drum brake Y 1

18 4015000025 垫圈GB93-10-65Mn Spring washer Y 4

19 4011000763 螺栓GB5783-M10*30EpZn-10.9 Bolt Y 4

20 4110002137051 输出法兰 ZL15F-04 Flange Y 1

21 4011000993 螺栓GB5783-M10*25EpZn-10.9 Bolt Y 8

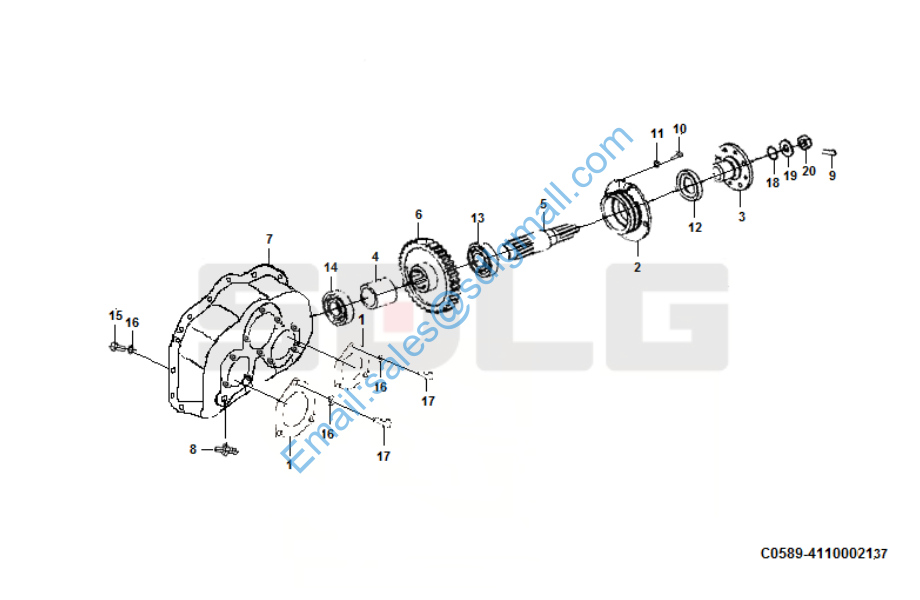

输入部分(370710) Input part

1 4110002137052 端盖ZL15F-02 Cover Y 2

2 4110002137053 输入轴承座ZL15F-07 Bearing seat Y 1

3 4110002137054 输入法兰ZL15F-05 Flange Y 1

4 4110002137055 凸垫圈ZL15F-13 Sleeve Y 1

5 4110002137056 输入轴ZL15F-08 Shaft Y 1

6 4110002137057 齿轮 ZL15F-09 Gear Y 1

7 4110002137058 壳体（Ⅱ）ZL15F-01 Housing Y 1

8 4110002137059 回油接头YJ280F-09 Nipple Y 1

9 4110002137087 开口销GB91-4*40 Split pin Y 1

10 4011000747 螺栓GB5783-M12*30EpZn-10.9 Screw Y 4

11 4015000026 垫圈GB93-12-65Mn Spring washer Y 4

12 4110002137089 油封GB13871-46*80*10 Sealing ring Y 2

13 4021000021 滚动轴承GB276-6308 Ball bearing Y 1

14 4021000213 滚动轴承GB276-6006 Ball bearing Y 1

15 4011000763 螺栓GB5783-M10*30EpZn-10.9 Bolt Y 15

16 4015000025 垫圈GB93-10-65Mn Spring washer Y 21

17 4011000993 螺栓GB5783-M10*25EpZn-10.9 Bolt Y 6

18 4110002137090 O型圈GB3452.1-32.5*3.1 O-ring Y 1

19 4110002137060 大垫圈ZL15.5-12B Washer N 1

20 4110002137061 螺母M20*1.5ZL15.5-8 Nut Y 1
