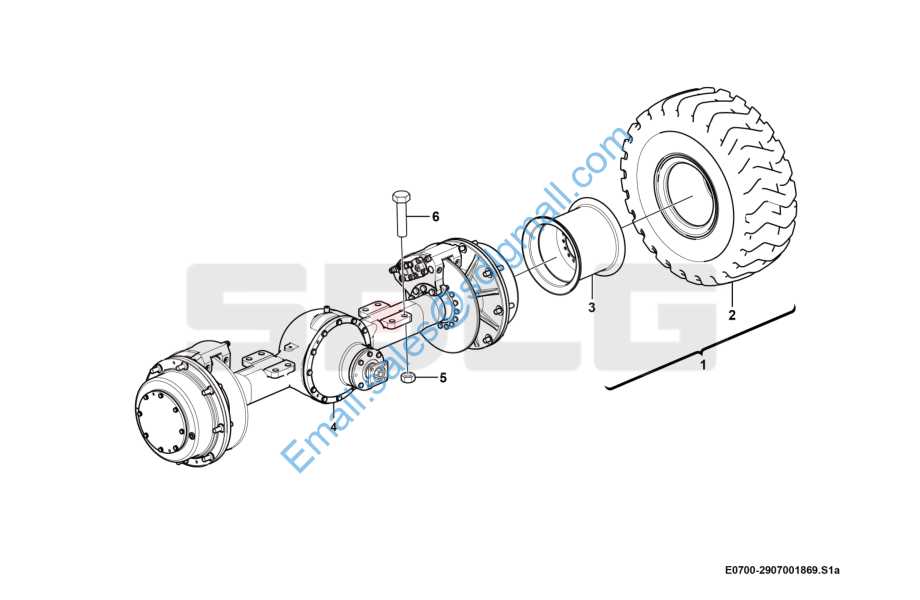

L916 SDLG 前桥总成 Front axle assembly E0700-2907001869

1 29070018681 轮胎总成 Wheel N 2
2 4110000016 轮胎GB2980-16/70-20 Tire N 2
3 4110002146 轮辋LG13-20 Rim Y 2
4 4110002139 驱动桥ZL16 Axle Y 1
5 4013000160 螺母GB889.2-M201.5EpZn-8 Lock nut Y 8

6 4011000113 螺栓GB5785-M201.5*90EpZn-8.8 Bolt Y 8

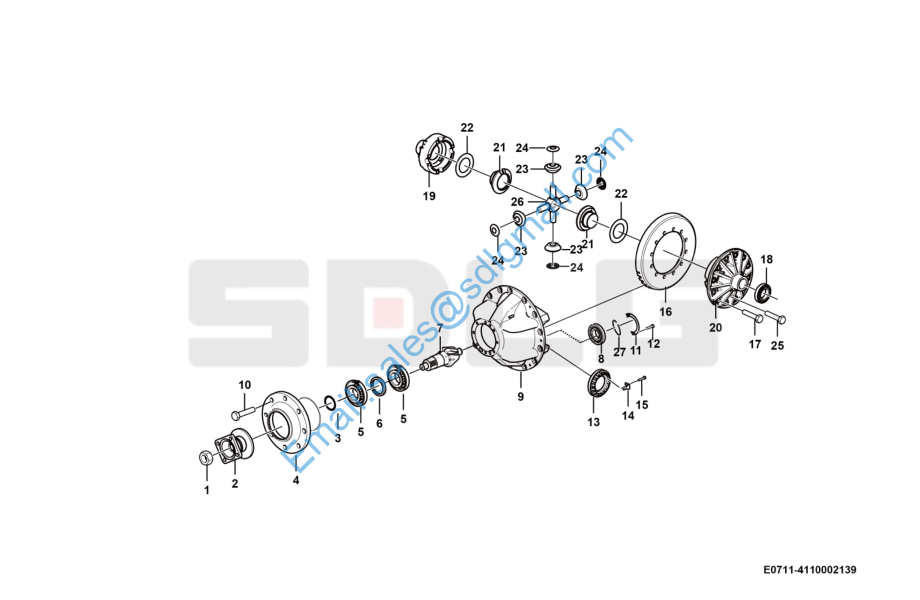

主传动 Front final drive assembly E0711-4110002139

1 4110002139001 主齿螺母（M14*2）ZL18E-01-1 Nut Y 1

2 4110002139002 主齿突缘ZL18E-01-2 Sleeve Y 1

3 4110002139003 油封（58*103*11／19）ZL18E-01-3 Sealing ring Y 1

4 4110002139004 轴承座ZL18E-01-4 Bearing housing Y 1

5 4110002139005 轴承（27309）ZL18E-01-5 Bearing Y 2

6 4110002139006 轴承隔套ZL18E-01-6 Sleeve Y 1

7 4110002139007 主动锥齿轮ZL18E-01-7 Angle gear Y 1

8 4110002139008 轴承（532505）ZL18E-01-8 Bearing Y 1

9 4110002139009 减速器壳ZL18E-01-9 Casing Y 1

10 4110002139010 螺栓（M12*1.75*35）ZL18E-01-10 Screw Y 6

11 4110002139011 半圆锁片ZL18E-01-11 Lock plate Y 2

12 4110002139012 螺栓（M6*30）ZL18E-01-12 Screw Y 2

13 4110002139013 调整螺母ZL18E-01-13 Nut Y 2

14 4110002139014 直角锁勾ZL18E-01-14 Lock hook Y 2

15 4110002139015 螺栓（M8*6）ZL18E-01-15 Screw Y 2

16 4110002139016 被动锥齿轮ZL18E-01-16 Angle gear Y 1

17 4110002139017 螺栓（M12*1.25*28）ZL18E-01-17 Screw Y 12

18 4110002139018 轴承（29590）ZL18E-01-18 Bearing Y 2

19 4110002139019 差速器右壳ZL18E-01-19 Differential housing Y 1

20 4110002139020 差速器左壳ZL18E-01-20 Differential housing Y 1

21 4110002139021 半轴齿轮ZL18E-01-21 Differential side gear Y 2

22 4110002139022 半轴齿轮调整垫ZL18E-01-22 Washer Y 2

23 4110002139023 行星齿轮ZL18E-01-23 Planet gear Y 4

24 4110002139024 行星齿轮垫ZL18E-01-24 Washer Y 4

25 4110002139026 螺栓（M10*60）ZL18E-01-26 Screw Y 12

26 4110002139025 十字轴ZL18E-01-25 Spider Y 1

27 4110002139027 弹性挡圈（25）ZL18E-01-27 Retaining ring Y 1

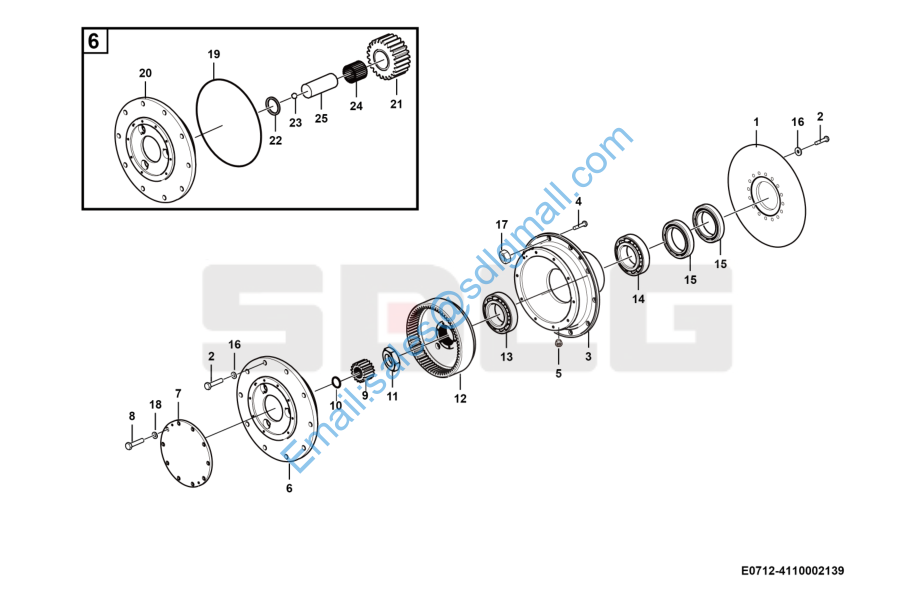

轮边减速器总成 Hub reduction E0712-4110002139

1 4110002139036 刹车盘ZL16-03-1 Brake disc Y 2

2 4110002139046 螺栓M12*1.25*35 Screw Y 56

3 4110002139037 轮毂ZL16-03-2 Hub Y 2

4 4110002139047 轮胎螺栓M18*1.5 Screw Y 16

5 4110002139038 油堵M20*1.5 Plug Y 4

6 4110002139039 行星轮架总成ZL16-03-3 Planet gear kit Y 2

7 4110002139040 边盖ZL16-03-4 Cover Y 2

8 4110002139048 螺栓M8*1.25*20 Screw Y 16

9 4110002139041 太阳轮ZL16-03-5 Sun gear Y 2

10 4015000020 挡圈GB894.1-35-65Mn Retaining ring Y 2

11 4110002139043 大帽ZL16-03-7 Sleeve Y 2

12 4110002139044 齿圈ZL16-03-8 Gear ring Y 2

13 4021000208 滚动轴承GB297-32014 Roller bearing Y 2

14 4021000228 滚动轴承GB297-30215 Bearing Y 2

15 4110002139054 油封HG4-338-66J-140*115*12 Sealing ring Y 1

16 4110002139050 弹垫φ12 Spring washer Y 56

17 4110002139051 螺母M18 Nut Y 16

18 4110002139052 弹垫φ8 Spring washer Y 16

19 4110002139055 O型圈GB/T3452-1992-298*3.5 O-ring N 2

20 4110002139028 行星轮架ZL16-03-3-1 Planet carrier Y 2

21 4110002139029 行星轮ZL16-03-3-3 Planet gear Y 6

22 4110002139030 行星轮垫ZL16-03-3-2 Washer Y 12

23 4090000126 钢球GB308-5-GCr15 Ball Y 6

24 4090000002 滚针GB309-3*29.8-GCr15 Needle roller Y 174

25 4110002139031 行星轮轴ZL16-03-3-4 Planet gear shaft Y 6

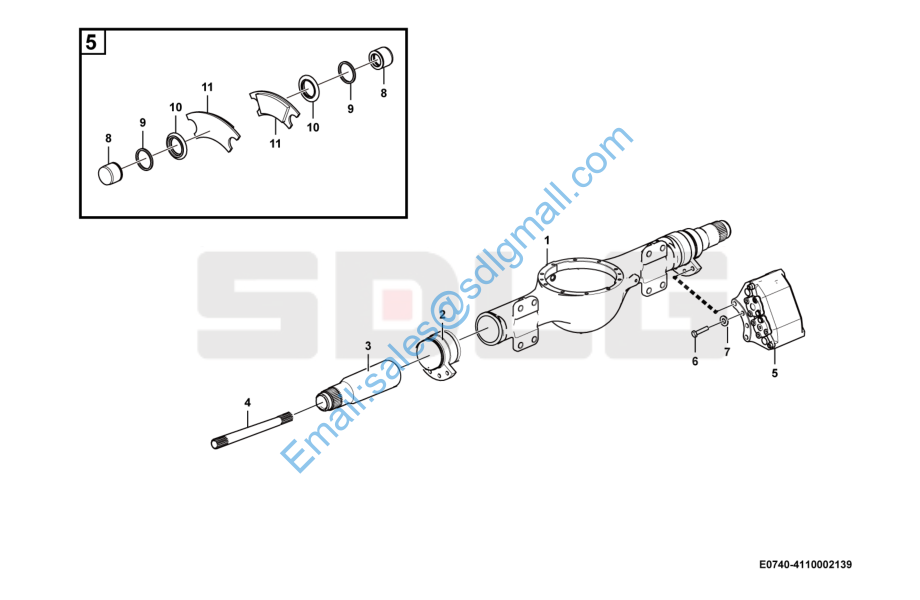

桥壳总成 Axle casing assembly E0740-4110002139

桥壳总成 Axle casing assembly E0740-4110002139

1 4110002139032 桥壳ZL16-02-1 Housing Y 1
2 4110002139033 钳子安装板ZL16-02-3 Plate Y 2
3 4110002139034 套管ZL16-02-2 Support shaft Y 2
4 4110002139042 半轴ZL16-03-6 Shaft half Y 2
5 4110002139045 钳子总成ZL16-04 Disc brake Y 2
6 4110002139049 螺栓M161.550 Screw Y 8
7 4110002139053 弹垫φ16 Spring washer N 8
8 4110002139056 制动钳活塞ZL16-04-01 Cylinder piston Y 2
9 4110002139059 制动钳O型圈ZL16-04-02 O-ring Y 2
10 4110002139060 制动钳防尘罩ZL16-04-03 Dust cover Y 2
11 4110002139058 摩擦片ZL16-04 Friction disc Y 2
